GHD Hair Straightener Repair by Fogma Ltd

GHD 4.2 Model (various colours)

This model is a MK4 pair of GHD straightener in various different colours. It was also given the label 4.3, but they were in fact exactly the same as the 4.2 irons. For information about repairing this model, see the Mk4 debugging page.

There are two design variations - we call them type 1 and type 2. To work out which variation you have see the type 1 vs type 2 page. There are also more details about the design variations below.

For photos of the special edition coloured versions see the following pages:

Normal operation is as follows:

If the temperature of the irons is below 5 degrees C then they will not work and the will emit a continuous beeping sound. To fix this, just bring them back up to normal temperature (gradually!) and then try again.

They commonly suffer from an R8 or R11 50 ohm resistor failure thanks to intermittent cable connections. For more details see the R8 resistor page.

We have stock of various 4.2 spare parts in our shop.

Design Variations

It seems that GHD did a reasonably significant redesign of the straightener without changing the model number. Therefore there are a couple of different designs which all have a label stating 4.2B. To see the design differences side by side have a look at the Type1/Type2 comparison page.

Type 1

This type of GHD 4.2B is very similar to previous models and uses the same cable connection etc:

This type uses the normal GHD Cable which looks like this:

Type 2

The differences are as follows:

Cables

The type 2 GHD 4.2B straighteners have a different cable connection to all previous GHD straighteners. To add to the confusion they also changed the type of cable and socket at some point!

The original type 2 4.2B iron used a cable like this:

This style of connector has a problem where the contacts for the central pin get bent outwards and stop making contact with the pin. Therefore if your GHDs are dead, try gently bending those contacts back in with a small screw driver. For more details see the type2 cable socket page. We would recommend replacing the cable socket with an upgraded part that does not suffer from this problem.

If you need a new cable for this style of connection, then we have them available on our shop in black, pink and purple.

Then at some point (probably around when the GHD Mk5 Gold series was launched) they change the cable socket for a new design which we call the type 3 cable socket:

The type 3 cable is available via our shop here - GHD Type 3 Cable. Replacement type 3 sockets are not available, however the type 2 cable socket fits in it's place. Therefore if you need to replace the socket, we recommend replacing both the cable and socket for a type 2 version - GHD Type 2 Cable and Socket

There is a video that shows how to replace the type 3 cable here - http://www.ghd-repair.co.uk/cable_replacement_mk5.html

Heater Plates

In all previous models of GHD the heater plate are held in by plate mounts that just clip onto the heater plate with plastic clips on the mounting part. In some 4.2B's however they use extra metal clips to hold it all together. This is a good thing as it removes the problem that previous models had with the plastic clips breaking off and the plates falling out.

The plates with metal clips look like this:

The clips can be removed with a small screw driver:

With the mounting part removed it looks like this:

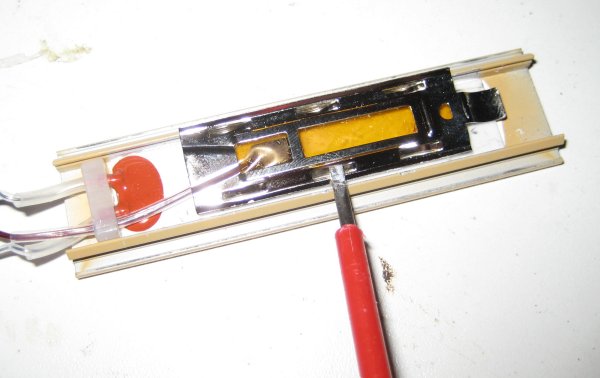

The clip that holds the heater element in place is quite difficult to remove without bending it. It can be removed with a small screw driver as follows:

Hinge Spring

The hinge spring is different and uses a bent bit of flat metal, rather than the traditional spring. It assembles like this:

Other Type 2 Photos:

FAQs




The information provided on this website is intended for use by people competent at repairing electrical products. If you are not confident about carrying out a safe and reliable repair, please consider our repair service. To state the obvious... Irons repaired incorrectly can be very dangerous!
